OSADA PEDISIA

The PEDISIA creates a clinic that children want to go back to.

We sought to “create an environment where children would want to come for treatment.”
Based on clinical data and practical insights, we pursued safety-conscious features that accommodate children’s unpredictable movements, a layout allowing parents to easily observe, and intuitive operability for dental professionals.
The PEDISIA is a unit that overcomes each individual challenge and that is replete with peace of mind and reliability.

Key points

The integrated chair that can fully recline limits the risk of pinching and ensures smooth dental care

The integrated chair that can fully recline is designed to reduce the risk of pinching.
The chair is designed to avoid pinching. If pinching were to somehow occur, a safety device that reverses the chair’s movement is activated.
There is no gap between the backrest and the seat, making the chair easy to clean.

The unit can be used in various ways in accordance with the form of treatment provided, thus reducing the burden on staff

Separating the movement pathways between the doctor area and the patient (parent) area creates a layout that helps keep medical equipment out of easy reach.
In addition, the handpiece holder can widely move to the left and right, enabling flexible treatment.

A movable cuspidor facilitates treatment that is easy on both the child and the dental hygienist.

The unit has a movable cuspidor to ensure that there is sufficient space for handpieces and instrument use.
The movable cuspidor is designed to allow children to rinse their mouths out and to enable parents to keep a close eye on them.

A dental unit featuring a low minimum chair height of 430 mm, designed to accommodate pediatric dental care.

The chair can be lowered to 430 mm and is designed to allow small children to sit down in and stand up from it.
Moreover, the chair can be raised to 700 mm, allowing comfortable treatment, regardless of the form of treatment provided by the dentist.
For children who have difficulty sitting down in and standing up from the chair in its lowest position, a step stool is available as an option.

Providing an opportunity for the dentist to communicate with children

An optional mouth-rinsing basin with a graphic and a Smile Support Animal are support items that not only make dental visits more enjoyable but can also be used by a dentist to engage with children during treatment.

Specifications

Product name (model)	“長田”牙科綜合治療台椅(未滅菌)
TFDA License No.	衛部醫器輸壹字第024336號
Manufacturer and distributor	OSADA ELECTRIC CO., LTD.
Power supply	Power supply voltage: 110V AC Power supply frequency: 60 Hz Power input: 6 A
Total weight	200kg

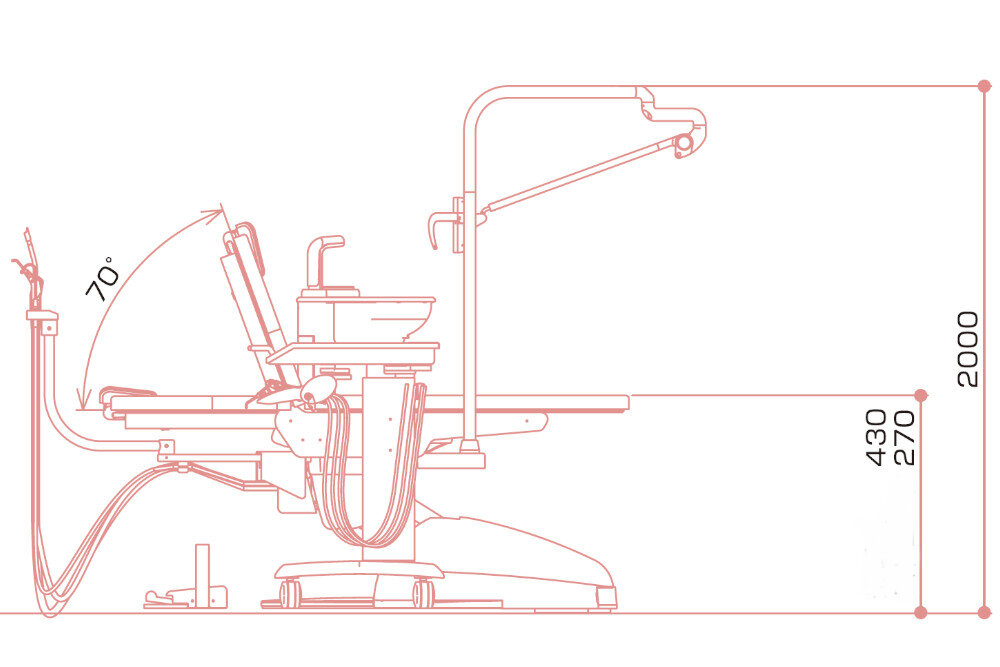

Lowest position/Highest position (Stroke)	Lowest Position: 430 mm / Highest Position: 700 mm (Stroke: 270 mm) Flat type Pediatric headrest (Stroke: 180 mm)
Table	Cart
Backrest adjustment angle	Auto/Manual: 65°
Cuspidor	Chair-mounted
Water supply and drainage	Integrated with the unit Water filter Automatic water line drainage Method of drainage: Gravity drainage
Safety devices	Priority bur fetching circuit Chair lock feature Emergency chair stop device Backrest, Spittoon stand arm, Assistant arm, Chair’s step safety device, Safety Device for the Treatment Table, Safety Device for the Base Arm of the Operating Light, Chair Emergency Stop Device
Other	Handpiece internal water line cleaning system Turbine excess oil flushing system Air flushing cleaning system Auto-Off feature
Frequently asked questions	■ What is the tallest patient (in centimeters) that can be treated? I’d also like to know the recommended ages for the unit. This unit is intended for elementary school-aged children up to 12 years old, with a maximum height of 165 cm. Please contact us for details. ■ Can the position of the dental light be adjusted? Changes are possible via customization. If you have other requests besides the colors of leather, you may be able to customize the unit to suit your clinic’s decor. Please note that we may not be able to accommodate some requests depending on the specifics. Please consult with us first. ■ Can I see the actual unit? You can see it in an OSADA Showroom. *Please contact us for details on showrooms where you can see the PEDISIA.
